2D/3D CAD Models Available

We know you want information at your fingertips immediately, wherever and whenever you are working on projects.

Our CAD Engine Allows You to:

  • Download 2D and 3D CAD models, drawings and detailed information of our products at any time, in your preferred format.
  • Directly insert CAD models into 25+ industry standard CAD software programs.
  • Download or directly email sales drawings and submittals to colleagues.
  • View, pan, zoom, and rotate 3D drawings.

How to Access TE-CO’s CAD Files:

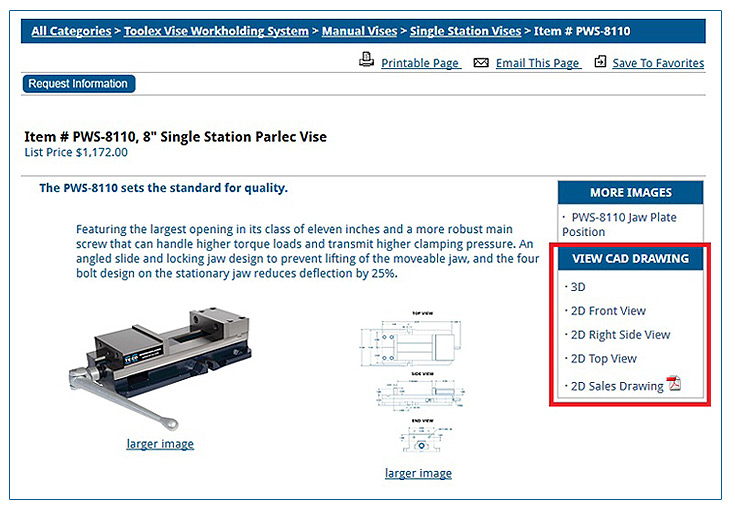

Select your Item # by browsing the catalog or using the search bar located in the header.

Select 2D or 3D format.

To access common CAD formats (AutoCAD, Solidworks, etc.) and direct insertions, switch to Interactive View.

Contact us if you have questions or would like a CAD drawing you cannot locate on our Website. Literature and videos also available.

Discover More With TE-CO Manufacturing

As an industry leader since 1926, TE-CO is committed to setting the standard for engineering expertise, superior product quality and world-class customer service. We take pride in offering our customers American-made products with cost-effective pricing and fast turnaround times. Contact our team online today for additional product information, pricing and availability.
